Single Cylinder Gas Storage Cabinet: A Practical Solution for Controlled Gas Handling

Product Overview

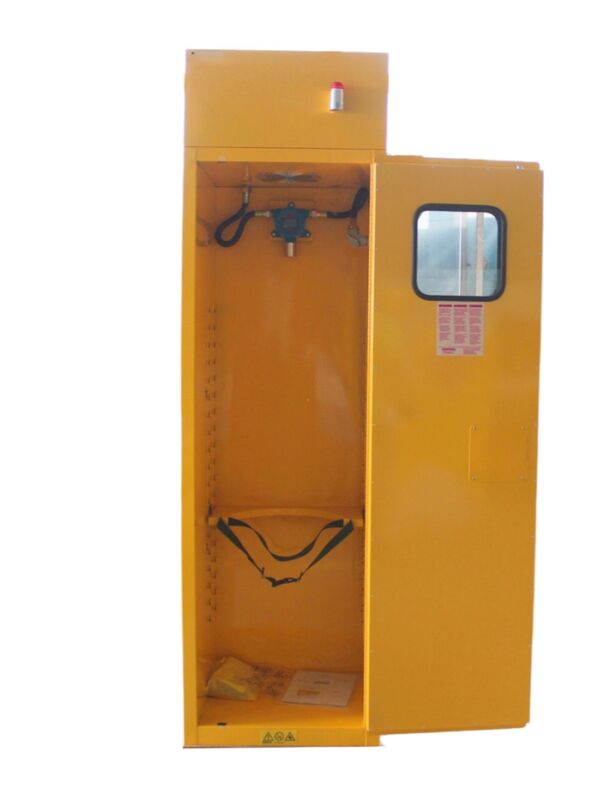

The Single Cylinder Gas Storage Cabinet is designed for laboratories and industrial environments requiring safe storage and controlled handling of individual gas cylinders.

By integrating structural containment, gas connection interfaces, and basic safety features, the cabinet provides a dedicated enclosure for standard gas cylinders used in various applications.

Structural Design (Parameter-Based)

 Cabinet Structure

• Vertical design for single cylinder storage
• Metal construction (typically steel) with corrosion-resistant coating
• Independent compartment to limit gas dispersion

Safety and Fixation

• Internal cylinder restraint system (strap/support)
• Bottom clearance for placement and operation
• Top section reserved for optional system installation

Gas Connection and Operation

• Integrated gas piping interface for regulator connection
• Viewing window on door for visual inspection
• Front-opening door for easy access and maintenance

Functional Features

The cabinet integrates several key components:

• Gas connection interface for cylinder and regulator systems
• Observation window for monitoring without opening the cabinet
• Reserved interfaces for optional upgrades (alarm, ventilation, detection systems)

Configuration can be adapted based on gas type (flammable, inert, etc.).

Application Scenarios

Suitable for:

• Laboratories (analytical and chemical processes)
• Industrial environments (welding, gas supply points)
• Medical or testing facilities (standard gas usage)

Particularly effective in scenarios requiring independent control of a single gas source.

Technical Considerations

The design focuses on:

• Structural containment to reduce exposure risk
• Mechanical restraint to prevent cylinder movement
• Integrated interfaces to standardize gas handling

Performance depends on gas properties (pressure, chemical characteristics) and site conditions.

Summary

The single cylinder gas cabinet provides a structured approach to gas storage and handling. Through enclosure design and interface integration, it supports safer and more organized gas management in both laboratory and industrial settings.
